Name: Pneumatic Cable Stripping Machine WPM-315
Brand: High-Precision Wire Cutting Machines
SKU: WPM-315
Availability: InStock
Rating: 5 (1 reviews)

Detailed description

Pneumatic Cable Stripping Machine (WPM-315)
Cable Stripping Machine, Cable Jacket Sheath Stripper, Cable Stripper
Function
1. Bevel design, according to somatology.
2. Dual-driving cylinder, no spring breakage.
3. Self-feeding oil and supply. A timely oil supply to the cylinder can decrease the abrasion of the interior cylinder and lengthen life.
4. Special sliding holder, balance stroke, and high peeling precision. Electric control, easy operation.
5. Adjustable structure, and wire thickness.

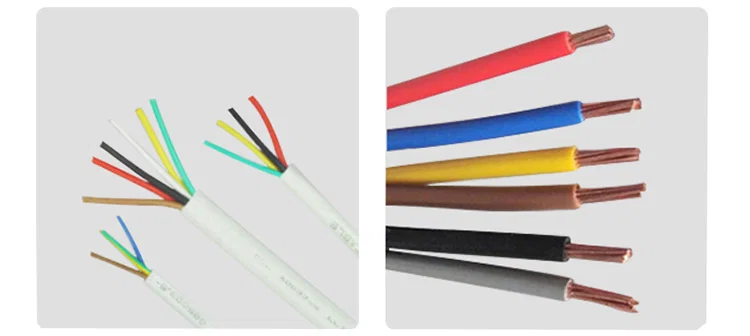

6. Suitable for short cables with small diameters, such as AC/DC, power wire, computer cable, electronic cable, and multi-core cable.
Model WPM-315
Stripping length 150mm
Wire Dia. 0-20mm
Air Pressure 0.5-0.7mpa
Voltage 220V/50HZ 110V//60HZ
Force 84-196KG
Weight 65KG
Size L1100*W550*H450mm

Model	WPM-305	WPM-310	WPM-315	WPM-330	WPM-416
Wire Size	1 - 5mm	1 - 10mm	1 - 15mm	1 - 20mm	1 - 30mm
Stripping Length	3 - 50mm	3 - 100mm	3 - 150mm	3 - 330mm	3 - 150mm
Cylinder Dia.	Ø40	Ø50	Ø60	Ø60	Ø80
Force	31-37Kg	49-115Kg	84-196Kg	84-196Kg	165-300Kg
Power Supply	220V	220V	220V	220V	220V
Dimension	40×30×27cm	48×33×28cm	60×42×36cm	110×55×45cm	80×62×55cm
Net. Weight	20Kg	25Kg	35Kg	65Kg	50Kg
Packing	Packed in Wood Case (Standard Export Packing)

FAQ:

1 Price terms

The price is based on EXW/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you the CFR price or CIF price for reference.

2. What is your main market?

There are kinds of different clients from Asia, Africa, America, and Europe market.

3 . Could provide a professional solution based on our product?

We always promote suitable solutions based on products and satisfy clients with cost-down requirements.

4 Can we provide the sample for testing?

Yes, It will be a pleasure if u provide us with the sample for testing.

5 Do u test all goods before delivery?

Yes,100% test before shipment.

™ products are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts.
If any main parts have quality problems, we will provide new parts and send them to you to change at once with detailed technical support and video illustration, or our experience engineer help to solve them. All problems and questions can be responded to within 24 hours after receiving email/phone/other chatting tools.
